206.2. Backup operations

206.2 Backup operations

Weight: 3

Description: Candidates should be able to use system tools to back up important system data.

Key Knowledge Areas:

  • Knowledge about directories that have to be include in backups

  • Awareness of network backup solutions such as Amanda, Bacula, Bareos and BackupPC

  • Knowledge of the benefits and drawbacks of tapes, CDR, disk or other backup media

  • Perform partial and manual backups.

  • Verify the integrity of backup files.

  • Partially or fully restore backups.

Terms and Utilities:

  • /bin/sh

  • dd

  • tar

  • /dev/st* and /dev/nst*

  • mt

  • rsync

Why do we need to Backup?

We have already talk about RAID and LVM, although making RAID group or creating LVM, make sort of reliability and safetiness but they are not consider as backup solutions. We might lose data and experience failure because of different reasons:

  • electricity goes off

  • Hardware failure (mobo, cpu, ram, hard disks, ...)

  • human kind miss configuration

  • ...

To tell the truth the last reason is the most common and the most dangerous one. To avoid them we need to backup, we have to backup, we are forced to backup.

What to backup?

Not all directories and file are required to be backed up especially when there backup space issues. In linux File System Hierarchy Standard (FHS) there are directories and files with different priority for backing up:

Directory

Priority

Description

/etc/

high

system wide configuration files required for all programs

/home/

high

Home directories for all users to store their personal files

/usr/local/

high

contains users programs that you install from source

/var/lib/

medium

contains lots of data, getting full backup leave us on the safe side.

/var/mail/

medium

local emails

/var/www/

medium

deafult web root

/var/spool/

medium

printer queues but might used by some applications

/var/log/

low

system log files

/opt/

medium

Contains add-on applications from individual vendors

/usr/

low

Contains binaries, libraries, documentation, and source-code for second level program

How to backup?

In any platform there are always some native tools and third party programs for backing up:

Package

Licence

Language

Graphical user (GUI) interface

Command Line(CMD)interface

BSD

C , Perl

No (except with Amanda Enterprise)

Yes

GPLv2.0

Perl

Yes

Yes

AGPLv3.0

C , C++

Yes

Yes

All three Packages has Linux, windows, MacOS versions. Now lets spend time on some traditional native tools for backing up.

tape

Using tapes for backing up is some how out modded but tapes are still used because they are cheap and huge but they are very slow. If we have had chance to administrate a system with tape device plugged, we would see these directories.

  • /dev/st0

  • /dev/nst0

The /dev/nst0 device is a non rewinding tape device, where as the /dev/st0 device is a rewinding tape device. The device you choose to use depends on your goal. Both devices are for the same piece of hardware but they behave differently. we can rewind /dev/st0 by using software but we can not use software for /dev/nst0 so we have to rewind it physically.

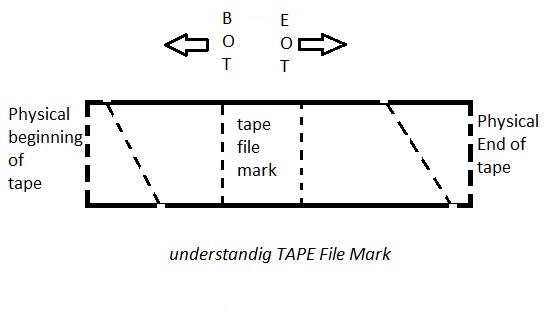

Understanding tape file marks and block size

Each tape device can store multiple tape backup files. Tape backup files are created using cpio, tar, dd, and so on. However, tape device can be opened, written data to, and closed by the various program. We can store several backups (tapes) on physical tape. Between each tape file is a “tape file mark”. This is used to indicate where one tape file ends and another begins on physical tape. You need to use mt command to positions the tape (winds forward and rewinds and marks).

mt command

mt command is used to control operations of the tape drive, such as finding status or seeking through files on a tape or writing tape control marks to the tape.

some mt command examples

Description

mt -f /dev/st0 rewind

rewind tape drive

mt -f /dev/st0 status

Display status information about tape unit

mt -f /dev/st0 erase

erase the tape

mt -f /dev/st0 eject

eject tape drive

mt -f /dev/st0 eof

Writes n EOF marks in the current position of tape

Here is the list of tape position commands:

fsf Forward space count files. The tape is positioned on the first block of the next file.
fsfm Forward space count files. The tape is positioned on the last block of the previous file.
bsf Backward space count files. The tape is positioned on the last block of the previous file.
bsfm Backward space count files. The tape is positioned on the first block of the next file.
asf The tape is positioned at the beginning of the count file.
Positioning is done by first rewinding the tape and then spacing forward over count filemarks.
fsr Forward space count records.
bsr Backward space count records.
fss (SCSI tapes) Forward space count setmarks.
bss (SCSI tapes) Backward space count setmarks.

and many many other options.

How is data stored on a tape drive ?

All data is stored subsequently in sequential tape archive format using tar. The first tape archive will start on the physical beginning of the tape (tar #0). The next will be tar #1 and so on.

tar

We have got to use tar (tape archive(r)) to create tar files, but infact its designed to archive files on tape device.

[email protected]:~# tree mydirectory/
mydirectory/
├── dir1
│ └── file1.txt
├── dir2
│ └── file2.txt
├── dir3
│ └── file3.txt
└── myfile
3 directories, 4 files
[email protected]:~# tar -cvf backup-mydirectory.tar mydirectory/
mydirectory/
mydirectory/dir3/
mydirectory/dir3/file3.txt
mydirectory/myfile
mydirectory/dir1/
mydirectory/dir1/file1.txt
mydirectory/dir2/
mydirectory/dir2/file2.txt
backup-mydirectory.tar mydirectory pooler-cpuminer-2.5.0.tar.gz
cpuminer mynfs

Opps, delete some file inorder to restore it from our backup:

[email protected]:~# rm -rf mydirectory/myfile , mydirectory/dir3
[email protected]:~# tree mydirectory/
mydirectory/
├── dir1
│ └── file1.txt
└── dir2
└── file2.txt
2 directories, 2 files
backup-mydirectory.tar mydirectory pooler-cpuminer-2.5.0.tar.gz
cpuminer mynfs

List the files inside tar file with -tvf switches:

[email protected]:~# tar -tvf backup-mydirectory.tar
drwxr-xr-x root/root 0 2018-02-05 03:54 mydirectory/
drwxr-xr-x root/root 0 2018-02-05 03:54 mydirectory/dir3/
-rw-r--r-- root/root 0 2018-02-05 03:54 mydirectory/dir3/file3.txt
-rw-r--r-- root/root 0 2018-02-05 03:53 mydirectory/myfile
drwxr-xr-x root/root 0 2018-02-05 03:54 mydirectory/dir1/
-rw-r--r-- root/root 0 2018-02-05 03:54 mydirectory/dir1/file1.txt
drwxr-xr-x root/root 0 2018-02-05 03:54 mydirectory/dir2/
-rw-r--r-- root/root 0 2018-02-05 03:54 mydirectory/dir2/file2.txt

We need to restore myfile and dir3 from our backup:

[email protected]:~# tar -xvf backup-mydirectory.tar mydirectory/myfile
mydirectory/myfile
[email protected]:~# tree mydirectory/
mydirectory/
├── dir1
│ └── file1.txt
├── dir2
│ └── file2.txt
└── myfile
2 directories, 3 files
[email protected]:~# tar -xvf backup-mydirectory.tar mydirectory/dir3/file3.txt
mydirectory/dir3/file3.txt
[email protected]:~# tree mydirectory/
mydirectory/
├── dir1
│ └── file1.txt
├── dir2
│ └── file2.txt
├── dir3
│ └── file3.txt
└── myfile
3 directories, 4 files

Lets combine usefull tar switches as a quick review:

tar command

Description

tar -cvf mybackup.tar myfiles/

Create tar backup file

tar -cvzf mybackup.tar.gz myfiles/

Create tar.gzip backup file

tar -cvjf mybackup.tar.bz2 myfiles/

Create tar.bzip2 backup file

tar -xvf mybackup.tar

Uncompress tar or gzip or bzip2 files

tar -tvf mybackup.tar

List content of tar or gzip or bzip2 files

tar -xvf mybackup.tar myfile

Extract a single file from tar, tar.gz and tar.bz2 file

tar -xvf mybackup.tar "file1.txt" "file2.txt"

Untar Multiple files from tar, tar.gz and tar.bz2 file

tar -xvf mybackup.tar --wildcards '*.conf'

Extract group of files using wildcard

tar -rvf mybackup.tar xyz.txt

Add files or directories to a tar, tar.gz and tar.bz2 file

tar -xvfW mybackup.tar

Verify tar, tar.gz and tar.bz2 Archive File

tar -czf mybackup.tar

Check the Size of the tar, tar.gz and tar.bz2 Archive File

rsync

Rsync (Remote Sync) is a most commonly used command for copying and synchronizing files and directories remotely as well as locally in Linux systems. With the help of rsync command we can copy and synchronize our data remotely and locally across directories, across disks and networks, perform data backups and mirroring between two Linux machines.

Some advantages and features of Rsync:

  • It efficiently copies and sync files to or from a remote system.

  • Supports copying links, devices, owners, groups and permissions.

  • It’s faster than scp (Secure Copy) Why ? because rsync uses remote-update protocol which allows to transfer just the differences between two sets of files. First time, it copies the whole content of a file or a directory from source to destination but from next time, it copies only the changed blocks and bytes to the destination.

  • Rsync consumes less bandwidth as it uses compression and decompression method while sending and receiving data both ends.

We might need to install rsync using yum install rsync command or apt install rsync in Debian.

Basic syntax of rsync is like rsync options source destination , and what are options:

rsync common options

Description

-v

copies data recursively (but don’t preserve timestamps and permission while transferring data)

-r

copies data recursively (but don’t preserve timestamps and permission while transferring data

-a

archive mode, archive mode allows copying files recursively and it also preserves symbolic links, file permissions, user & group ownerships and timestamps

-z

compress file data

-h

human-readable, output numbers in a human-readable format

Enough introduction lets see rsync in action:

backup-mydirectory.tar mydirectory pooler-cpuminer-2.5.0.tar.gz
cpuminer mynfs
### copy / sync a file on a local computer
[email protected]:~# rsync -zvh backup-mydirectory.tar /tmp/backups/
backup-mydirectory.tar
sent 316 bytes received 35 bytes 702.00 bytes/sec
total size is 10.24K speedup is 29.17
### copy/sync a directory on a local computer
[email protected]:~# tree mydirectory/
mydirectory/
├── dir1
│ └── file1.txt
├── dir2
│ └── file2.txt
├── dir3
│ └── file3.txt
└── myfile
3 directories, 4 files
[email protected]:~# rsync -avzh mydirectory/ /tmp/backups/
sending incremental file list
./
myfile
dir1/
dir1/file1.txt
dir2/
dir2/file2.txt
dir3/
dir3/file3.txt
sent 379 bytes received 115 bytes 988.00 bytes/sec
total size is 0 speedup is 0.00

and to Copy a Directory from Local Server to a Remote Server:

[email protected]:~# rsync -azv mydirectory [email protected]:/home/
[email protected]'s password:
sending incremental file list
mydirectory/
mydirectory/myfile
mydirectory/dir1/
mydirectory/dir1/file1.txt
mydirectory/dir2/
mydirectory/dir2/file2.txt
mydirectory/dir3/
mydirectory/dir3/file3.txt
sent 389 bytes received 112 bytes 143.14 bytes/sec
total size is 0 speedup is 0.00

and result:

mydirectory payam

And visa versa, Copy/Sync a Remote Directory to a Local Machine:

[email protected]'s password:
receiving incremental file list
mydirectory/
mydirectory/myfile
mydirectory/dir1/
mydirectory/dir1/file1.txt
mydirectory/dir2/
mydirectory/dir2/file2.txt
mydirectory/dir3/
mydirectory/dir3/file3.txt
sent 124 bytes received 389 bytes 146.57 bytes/sec
total size is 0 speedup is 0.00
[email protected]:~# ls /tmp/
backups
_cafenv-appconfig_
config-err-aoEHBZ
mydirectory
systemd-private-5c9b83ef1a904073864354a680e17c01-colord.service-JNMAsj
systemd-private-5c9b83ef1a904073864354a680e17c01-rtkit-daemon.service-wp0M3z
systemd-private-5c9b83ef1a904073864354a680e17c01-systemd-timesyncd.service-fh7T2M
unity_support_test.0
VMwareDnD
vmware-payam
vmware-root

rsync over ssh

Most of the time, rsync is run on top of ssh. In the rare case where someone has bothered to set up an rsync daemon, that uses port 873:

[email protected]:~# cat /etc/services | grep rsync
rsync 873/tcp
rsync 873/udp

using SSH protocol while transferring our data you can be ensured that your data is being transferred in a secured connection with encryption so that nobody can read your data while it is being transferred over the wire on the internet.

when we use rsync we need to provide the user/root password to accomplish that particular task, so using SSH option will send our logins in an encrypted manner so that our password will be safe. use -e option to make sure we are using rsync over ssh:

### Copy a Directory from a Local Server to a Remote Server with SSH
[email protected]:~# rsync -azve ssh mydirectory [email protected]:/home/
[email protected]'s password:
sending incremental file list
sent 233 bytes received 20 bytes 72.29 bytes/sec
total size is 0 speedup is 0.00
### Copy a directory from a Remote Server to a Local Server with SSH
[email protected]:~# rsync -azve ssh [email protected]:/home/mydirectory /tmp/
[email protected]'s password:
receiving incremental file list
sent 28 bytes received 225 bytes 33.73 bytes/sec
total size is 0 speedup is 0.00

Other rsync usefull commands:

  • Show Progress While Transferring Data with rsync:

rsync -azve ssh --progress mydirectory [email protected]:/home/

  • Include and exclude:

rsync -azve ssh --include 'D*' --exclude '*' mydirectory [email protected]:/home/ : include those files and directory only which starts with ‘D’ and exclude all other files and directory

  • delete option

If a file or directory not exist at the source, but already exists at the destination, you might want to delete that existing file/directory at the target while syncing .

We can use ‘–delete‘ option to delete files that are not there in source directory:

rsync -azv --delete [email protected]:/home/mydirectory

rsync other usefull options (might seen in exam)

Description

--max-size='200K'

Set the Max Size of Files to be Transferred

--remove-source-files

Automatically Delete source Files after successful Transfer

--bwlimit=100

Set Bandwidth Limit and Transfer File

--dry-run

Do dry run, does not doing any thing, just show what would be done

by default rsync syncs changed blocks and bytes only, if you want explicitly want to sync whole file then you use ‘-W‘ option with it:

rsync -zvhW backup.tar /tmp/backups/backup.tar

dd

The dd command stands for “data duplicator” and used for copying and converting data. It is very powerful low level utility of Linux. We should be very careful while working with this utility, data loss can convert the dd utility as a “data destroyer” for us. That’s why it is recommended that do not use dd command on a production machine until you get familiarity on this.

It can be used for making clones of volumes, filesystems, writing images to disks, and even erasing drives. The syntax of dd command is dd if=<source file name> of=<target file name> [Options]

dd command

Description

dd if=/dev/sda of=/dev/sdb

Clone one hard disk to another hard disk

dd if =/dev/sda2 of=~/hddpar1.img

Backing up a partition to a file

dd if=hddpar1.img of=/dev/sdb1

Restoring image to another disk

dd if =/dev/sda2 | bzip2 hddpar1.img.bz2

using bzip2 to compress when creating image

dd if=/home/myuser/abc.txt of=/mnt/abc.txt

dd command can be used as file copier as well

dd command can be pretty dangerous, watch out when using it.
