205.2. Advanced Network Configuration and Troubleshooting

205.2 Advanced Network Configuration and Troubleshooting
Weight: 4
Description: Candidates should be able to configure a network device to implement various network authentication schemes. This objective includes configuring a multi-homed network device and resolving communication problems.
Key Knowledge Areas:
Utilities to manipulate routing tables
Utilities to configure and manipulate ethernet network interfaces
Utilities to analyze the status of the network devices
Utilities to monitor and analyze the TCP/IP traffic
Terms and Utilities:
ip
ifconfig
route
arp
ss
netstat
lsof
ping, ping6
nc
tcpdump
nmap
In this lesson we discuss about some other Network tools which help up in network trouble shooting.
What is socket?
In computer networking, and more definitely in software terms, a port is a logical entity which acts as a endpoint of communication to identify a given application or process on an Linux operating system. It is a 16-bit number (0 to 65535) which differentiates one application from another on end systems. Different categories of ports are:
0-1023 – the Well Known Ports, also referred to as System Ports.
1024-49151 – the Registered Ports, also known as User Ports.
49152-65535 – the Dynamic Ports, also referred to as the Private Ports.
The two most popular Internet transport protocols, Transmission Control Protocol (TCP) and the User Datagram Protocol (UDP) and other less known protocols use port numbers for communication sessions.
A combination of an IP address, port and protocol such as TCP/UDP is known as a socket, and every service must have a unique socket.
netstat
netstat (network statistics)outputs network connections form local host perspective, routing, interface statistics, connections and multicast information. so its pretty handy.
1
[email protected]:~# netstat
2
Active Internet connections (w/o servers)
3
Proto Recv-Q Send-Q Local Address           Foreign Address         State
4
tcp        1      0 192.168.10.152:44480    hanger.canonical.c:http CLOSE_WAIT
5
tcp        0      0 192.168.10.152:42844    yukinko.canonical.:http ESTABLISHED
6
udp        0      0 localhost:57079         ubuntu:domain           ESTABLISHED
7
udp        0      0 localhost:47407         ubuntu:domain           ESTABLISHED
8
Active UNIX domain sockets (w/o servers)
9
Proto RefCnt Flags       Type       State         I-Node   Path
10
unix  2      [ ]         DGRAM                    26445    /run/user/1000/systemd/notify
11
unix  2      [ ]         DGRAM                    22660    /run/user/108/systemd/notify
12
unix  9      [ ]         DGRAM                    15796    /run/systemd/journal/socket
13
unix  2      [ ]         DGRAM                    15797    /run/systemd/journal/syslog
14
unix  20     [ ]         DGRAM                    15798    /run/systemd/journal/dev-log
15
unix  3      [ ]         DGRAM                    14516    /run/systemd/notify
16
unix  3      [ ]         STREAM     CONNECTED     27303
17
unix  3      [ ]         DGRAM                    16955
18
unix  3      [ ]         STREAM     CONNECTED     23403    @/tmp/dbus-0tx8y6voha
19
unix  3      [ ]         STREAM     CONNECTED     30750    /run/systemd/journal/stdout
20
unix  3      [ ]         STREAM     CONNECTED     23522    /run/systemd/journal/stdout
21
unix  3      [ ]         STREAM     CONNECTED     28047
22
unix  3      [ ]         STREAM     CONNECTED     22005    /run/systemd/journal/stdout
23
unix  3      [ ]         STREAM     CONNECTED     28223    @/tmp/dbus-K7JvDcncxI
24
unix  3      [ ]         STREAM     CONNECTED     22006    /run/systemd/journal/stdout
25
unix  3      [ ]         DGRAM                    28279
26
unix  3      [ ]         STREAM     CONNECTED     27098    /var/run/dbus/system_bus_socket
27
unix  3      [ ]         STREAM     CONNECTED     28737    /var/run/cups/cups.sock
28
unix  3      [ ]         STREAM     CONNECTED     18372    /var/run/dbus/system_bus_socket
29
unix  3      [ ]         STREAM     CONNECTED     29963
30
unix  3      [ ]         DGRAM                    16958
31
unix  3      [ ]         STREAM     CONNECTED     23372
32
unix  3      [ ]         STREAM     CONNECTED     22015
33
unix  2      [ ]         DGRAM                    18086
34
unix  3      [ ]         STREAM     CONNECTED     30009
35
unix  3      [ ]         STREAM     CONNECTED     23529    /var/run/dbus/system_bus_socket
36
unix  3      [ ]         STREAM     CONNECTED     18188    /var/run/dbus/system_bus_socket
37
unix  3      [ ]         STREAM     CONNECTED     28042
38
unix  3      [ ]         STREAM     CONNECTED     19237    /run/systemd/journal/stdout
39
unix  3      [ ]         STREAM     CONNECTED     30014    @/tmp/dbus-K7JvDcncxI
40
unix  3      [ ]         STREAM     CONNECTED     23289
41
unix  3      [ ]         STREAM     CONNECTED     29849
42
unix  3      [ ]         STREAM     CONNECTED     28050    @/com/ubuntu/upstart-session/1000/2169
43
unix  3      [ ]         STREAM     CONNECTED     23332    @/tmp/.X11-unix/X0
44
unix  3      [ ]         STREAM     CONNECTED     30806
45
unix  2      [ ]         DGRAM                    22687
46
unix  3      [ ]         STREAM     CONNECTED     27237
47
unix  3      [ ]         STREAM     CONNECTED     28915
48
unix  3      [ ]         STREAM     CONNECTED     26586
49
unix  3      [ ]         STREAM     CONNECTED     24238    /run/systemd/journal/stdout
50
unix  2      [ ]         DGRAM                    22556
51
unix  3      [ ]         STREAM     CONNECTED     27263
52
unix  3      [ ]         STREAM     CONNECTED     30005    @/tmp/.X11-unix/X0
53
unix  3      [ ]         STREAM     CONNECTED     27232
54
unix  3      [ ]         STREAM     CONNECTED     27174    @/tmp/dbus-K7JvDcncxI
55
unix  3      [ ]         STREAM     CONNECTED     18371    /var/run/dbus/system_bus_socket
56
unix  3      [ ]         STREAM     CONNECTED     25098
57
unix  3      [ ]         STREAM     CONNECTED     17382
58
unix  3      [ ]         STREAM     CONNECTED     28751    /run/systemd/journal/stdout
59
unix  3      [ ]         STREAM     CONNECTED     23256
60
unix  3      [ ]         STREAM     CONNECTED     19416    /run/systemd/journal/stdout
61
unix  3      [ ]         STREAM     CONNECTED     27276    @/tmp/dbus-K7JvDcncxI
62
unix  3      [ ]         STREAM     CONNECTED     19418    /run/systemd/journal/stdout
63
unix  3      [ ]         STREAM     CONNECTED     28226    @/tmp/dbus-K7JvDcncxI
64
unix  3      [ ]         STREAM     CONNECTED     23528
65
unix  3      [ ]         STREAM     CONNECTED     29966
66
unix  3      [ ]         DGRAM                    16957
67
unix  3      [ ]         STREAM     CONNECTED     19739    /var/run/dbus/system_
68
.....
69
....
70
..
71
.
Copied!
netstat it self give us a log list of network information which might not be useful, so lets try some useful switches:
useful netstat command switches
Description
-s , --statistics
gives summary by protocol type and message type
-i , --interfaces
Display a table of all network interfaces
-r , --route
shows  routing table  information
-a , --all
Show both listening and non-listening sockets
-t , --tcp
Enabales listening of tcp ports
-u , --udp
Enables listening of udp ports
-l , --listening
Prints only listening  sockets
-p , --program
Shows PID and the name of associated program
-e , --extend
Shows additional information, use twice for more info
-n , --numeric
Shows numerical addresses
netstat supports ipv6.
ss
The ss command is capable of showing more information than the netstat and is faster. The netstat command reads various /proc files to gather information. However this approach falls weak when there are lots of connections to display. This makes it slower.
The ss command gets its information directly from kernel space. The options used with the ss commands are very similar to netstat making it an easy replacement.
If we use the ss command without any arguments or options, it will return a complete list of TCP sockets with established connections:
1
Netid  State      Recv-Q Send-Q Local Address:Port                 Peer Address:Port
2
u_str  ESTAB      0      0       * 23433                 * 27689
3
u_str  ESTAB      0      0       * 19210                 * 19211
4
u_str  ESTAB      0      0       * 28948                 * 30007
5
u_str  ESTAB      0      0       * 23378                 * 25314
6
u_str  ESTAB      0      0      @/tmp/dbus-FSfvGgFOBN 23345                 * 25
7
283
8
u_str  ESTAB      0      0       * 30024                 * 28207
9
u_str  ESTAB      0      0       * 27840                 * 23551
10
u_str  ESTAB      0      0      @/tmp/dbus-FSfvGgFOBN 25388                 * 23
11
459
12
u_str  ESTAB      0      0      @/tmp/dbus-FSfvGgFOBN 29978                 * 31
13
023
14
u_str  ESTAB      0      0      @/tmp/.X11-unix/X0 30930                 * 28156
15
​
16
u_str  ESTAB      0      0      /run/systemd/journal/stdout 28986
17
  * 31082
18
u_str  ESTAB      0      0      @/tmp/dbus-FSfvGgFOBN 27007                 * 23
19
483
20
u_str  ESTAB      0      0      /var/run/dbus/system_bus_socket 20007
21
      * 19011
22
u_str  ESTAB      0      0       * 28949                 * 30010
23
--More--
Copied!
useful ss command
Description
-l , --listening
Display only listening sockets
-4
for IPv4
-6
for IPv6
-a , --all
Display both listening and non-listening (for TCP this means established connections) sockets
-t , --tcp
Shows established or CONNECTED tcp connections
-u , --udp
Shows established or CONNECTED tcp connections
-s , --summary
Print summary statistics.
-o , --options
time information of each connection would be displayed
-n , --numeric
Do not try to resoleve service names
lsof
To get a list of files which are opened by users and associated processes with them we use lsof (LiSt Open Files).
1
[email protected]:~# lsof | more
2
COMMAND    PID  TID             USER   FD      TYPE             DEVICE SIZE/OFF       NODE NAME
3
systemd      1                  root  cwd       DIR                8,1     4096          2 /
4
systemd      1                  root  rtd       DIR                8,1     4096          2 /
5
systemd      1                  root  txt       REG                8,1  1577232     135885 /lib/systemd/systemd
6
systemd      1                  root  mem       REG                8,1    18976     136484 /lib/x86_64-linux-gnu/libuuid.so.1.3.0
7
systemd      1                  root  mem       REG                8,1   262408     136292 /lib/x86_64-linux-gnu/libblkid.so.1.1.0
8
systemd      1                  root  DEL       REG                8,1              136324 /lib/x86_64-linux-gnu/libdl-2.23.so
9
systemd      1                  root  mem       REG                8,1   456632     136429 /lib/x86_64-linux-gnu/libpcre.so.3.13.2
10
systemd      1                  root  DEL       REG                8,1              136300 /lib/x86_64-linux-gnu/libc-2.23.so
11
systemd      1                  root  DEL       REG                8,1              136446 /lib/x86_64-linux-gnu/libpthread-2.23.so
12
systemd      1                  root  mem       REG                8,1   286824     136376 /lib/x86_64-linux-gnu/libmount.so.1.1.0
13
systemd      1                  root  mem       REG                8,1    64144     136282 /lib/x86_64-linux-gnu/libapparmor.so.1.4.0
14
systemd      1                  root  mem       REG                8,1    92864     136363 /lib/x86_64-linux-gnu/libkmod.so.2.3.0
15
systemd      1                  root  mem       REG                8,1   117288     136290 /lib/x86_64-linux-gnu/libaudit.so.1.0.0
16
systemd      1                  root  mem       REG                8,1    55904     136416 /lib/x86_64-linux-gnu/libpam.so.0.83.1
17
systemd      1                  root  mem       REG                8,1   252152     136457 /lib/x86_64-linux-gnu/libseccomp.so.2.2.3
Copied!
lsof useful commmands
Description
lsof -n
Do not tries to resolve IP Addresses to DNS
lsof  /var/log/syslog
Shows which processes have opened specific file
lsof +D /var/log
List opened files under a Directory
lsof /home
List processes using a mount point
lsof -u payam
List files opened by a specific user
lsof -p 1357
all open files by specific process
lsof -c ssh
List opened files based on process names starting with ...
lsof -t /var/log/syslog
list process id of a process which opened /var/log/syslog
lsof -i
list all network connections
ping

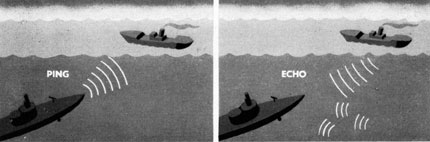

PING (Packet INternet Groper) command is the best way to test connectivity between two nodes. Whether it is Local Area Network (LAN) or Wide Area Network (WAN).
How does ping work? Ping use ICMP (Internet Control Message Protocol) to communicate to other devices.When a user pings a host on the Internet, a series of ICMP packets are sent to the host, which responds by sending packets in return. The user’s client is then able to compute the round trip time between two points on the Internet.
You can ping host name or ip address :
1
[email protected]:~# ping 8.8.8.8
2
PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
3
64 bytes from 8.8.8.8: icmp_seq=1 ttl=128 time=244 ms
4
64 bytes from 8.8.8.8: icmp_seq=2 ttl=128 time=239 ms
5
^C
6
--- 8.8.8.8 ping statistics ---
7
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
8
rtt min/avg/max/mdev = 239.179/241.812/244.446/2.679 ms
9
​
10
[email protected]:~# ping yahoo.com
11
PING yahoo.com (98.139.180.180) 56(84) bytes of data.
12
64 bytes from media-router-fp1.prod.media.vip.bf1.yahoo.com (98.139.180.180): icmp_seq=1 ttl=128 time=248 ms
13
64 bytes from media-router-fp1.prod.media.vip.bf1.yahoo.com (98.139.180.180): icmp_seq=2 ttl=128 time=224 ms
14
64 bytes from media-router-fp1.prod.media.vip.bf1.yahoo.com (98.139.180.180): icmp_seq=3 ttl=128 time=232 ms
15
^C
16
--- yahoo.com ping statistics ---
17
3 packets transmitted, 3 received, 0% packet loss, time 2003ms
18
rtt min/avg/max/mdev = 224.253/235.002/248.218/9.953 ms
Copied!
In Linux ping command keep executing until we interrupt.
useful ping switches
Description
-v
verbose mode
-V
Show version and exit
-c 5
Stop after sending 5 ECHO_REQUEST packets.
-i 0.9
Increase / decrease pint time interval
-O
Report outstanding ECHO REPLAY before sending next packet
- w 10
Specify a timeout, in seconds, before ping exits regardless of how many packets have been sent or received
-s 100
Change the default packet size from 56 to 100
-R
Record and print route of how ECHO_REQUEST sent and ECHO_REPLY received
-a
Audible ping: Give beep when the peer is reachable
ping6
Regular ping command only works with IPv4 address. Use ping6 command to send ICMPv6 ECHO_REQUEST packets to network hosts from a host or gateway. Try to set IPv6 gateway and test:
1
ping6 ipv6.google.com
Copied!
nc
Netcat (also known as ‘nc’ or ‘Swiss Army knife’) is a networking utility used for reading or writing from TCP and UDP sockets using an easy interface. Netcat is used by Administrators, Developers and pen testers because of its features.
1
  .       .
2
  \`-"'"-'/
3
   } 6 6 {
4
  ==. Y ,==
5
    /^^^\  .
6
   /     \  )
7
  (  )-(  )/     _
8
  -""---""---   /
9
 /           \_/
10
(     ____
11
 \_.=|____E
12
​
13
[email protected]:~# nc
14
This is nc from the netcat-openbsd package. An alternative nc is available
15
in the netcat-traditional package.
16
usage: nc [-46bCDdhjklnrStUuvZz] [-I length] [-i interval] [-O length]
17
      [-P proxy_username] [-p source_port] [-q seconds] [-s source]
18
      [-T toskeyword] [-V rtable] [-w timeout] [-X proxy_protocol]
19
      [-x proxy_address[:port]] [destination] [port]
Copied!
With netcat (nc) we can setup kind of client server connection over a specific port. For demo lets start chatting between two servers, server1 starts listening on port 12345:
1
[email protected]:~# nc -l 12345
Copied!
send text stream from server2 to server1:
1
[email protected]:~$ su
2
Password:
3
[email protected]:/home/payam# su -
4
[email protected]:~# nc 192.168.10.152 80
5
Hello!
6
I'm here to send some messages over port 80
7
using netcat :)
Copied!
and see the result on server1:
1
Hello!
2
I'm here to send some messages over port 80
3
using netcat :)
Copied!
netcat useful switches
Description
-4
Forces nc to use IP v4 only
-6
Forces nc to use IP v6 only
-v
Give more verbose output
-n
Do not DNS Lookup for IP Addresses, Host Name or ports
-k
allow server to  continue listening  after client disconnect
-u
use udp
-w
setting up time out
also we can use nc for prt scanning although netcat is not the best tool for the job:
1
[email protected]:~# nc -v 192.168.10.152 -z 12340-12346
2
nc: connect to 192.168.10.152 port 12340 (tcp) failed: Connection refused
3
nc: connect to 192.168.10.152 port 12341 (tcp) failed: Connection refused
4
nc: connect to 192.168.10.152 port 12342 (tcp) failed: Connection refused
5
nc: connect to 192.168.10.152 port 12343 (tcp) failed: Connection refused
6
nc: connect to 192.168.10.152 port 12344 (tcp) failed: Connection refused
7
Connection to 192.168.10.152 12345 port [tcp/*] succeeded!
8
nc: connect to 192.168.10.152 port 12346 (tcp) failed: Connection refused
Copied!
-z says that nc should just scan for listening daemons, without sending any data to them. can not be used with -l option.
tcpdump
tcpdump is command-line packet sniffers and analyzer tool which is used to capture or filter TCP/IP packets which recieved or transfered over a network on a specific interface.
tcpdump also give us a option to save captured packets in a file in a pcap format. It is very useful for future analysis and also file can be viewed by tcpdump command or a open source GUI based tool like Wireshark.
1
[email protected]:~# tcpdump
2
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
3
listening on ens33, link-type EN10MB (Ethernet), capture size 262144 bytes
4
03:12:41.296807 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 877174157:877175557, ack 3379990991, win 64240, length 1400: HTTP
5
03:12:41.297065 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 1400, win 65535, length 0
6
03:12:41.298574 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 1400:2800, ack 1, win 64240, length 1400: HTTP
7
03:12:41.298621 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 2800:7000, ack 1, win 64240, length 4200: HTTP
8
03:12:41.298650 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 7000, win 65535, length 0
9
03:12:41.299625 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 7000:8400, ack 1, win 64240, length 1400: HTTP
10
03:12:41.300067 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 8400, win 65535, length 0
11
03:12:41.798839 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 92300:93600, ack 1, win 64240, length 1300: HTTP
12
03:12:41.799351 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 93600, win 65535, length 0
13
03:12:41.800018 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 93600:96200, ack 1, win 64240, length 2600: HTTP
14
03:12:41.800610 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 96200, win 65535, length 0
15
03:12:41.801294 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 96200:101600, ack 1, win 64240, length 5400: HTTP
16
03:12:41.801393 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 101600, win 65535, length 0
17
03:12:41.801538 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 101600:103000, ack 1, win 64240, length 1400: HTTP
18
03:12:41.801743 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 103000, win 65535, length 0
19
03:12:41.807292 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 103000:114200, ack 1, win 64240, length 11200: HTTP
20
03:12:41.807493 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 114200, win 65535, length 0
21
03:12:41.808278 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 114200:118400, ack 1, win 64240, length 4200: HTTP
22
03:12:41.808417 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 118400, win 65535, length 0
23
03:12:41.809282 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 118400:123500, ack 1, win 64240, length 5100: HTTP
24
03:12:41.809402 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 123500, win 65535, length 0
25
03:12:41.952442 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 123500:124800, ack 1, win 64240, length 1300: HTTP
26
03:12:41.952677 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 124800, win 65535, length 0
27
03:12:41.961111 IP economy.canonical.com.http > 192.168.10.152.60388: Flags [P.], seq 124800:127400, ack 1, win 64240, length 2600: HTTP
28
03:12:41.961181 IP 192.168.10.152.60388 > economy.canonical.com.http: Flags [.], ack 127400, win 65535, length 0
29
^C
30
27 packets captured
31
71 packets received by filter
32
44 packets dropped by kernel
Copied!
watch some usefull tcpdum commands:
useful tcpdump command
Description
tcpdump -D
Display available interfaces
tcpdum -i ens33
Capture Packets from specific interface
tcpdump -c 10 -i ens33
Capture only N neumber of packets
tcpdump -w myfile.pcap -i ens33
Capture and save packets in a file
tcpdump -r myfile.pcap
Read captured packets file
tcpdump -n -i ens33
Capture IP address Packets
tcpdum -i ens33 tcp
Only TCP Packets are captured
tcpdump -i ens33 port 22
Capture packets from specific  port
tcpdump -i eth0 src 192.168.10.150
Capture packets from source IP
tcpdump -i eth0 dst 209.85.144.139
Capture packets from destination IP
tcpdump -i ens33 ipv6
Sniffing for IPv6
nmap
nmap (Network Mapper) is a security scanner.It is used to discover hosts and services on a computer network, whith the goal of building a "map" of the network. To accomplish it, Nmap sends specially designed packets to the target host(s) and then analyzes the responses. Nmap can adapt to network conditions including latency and congestion during a scan. The Nmap user community continues to develop and refine the tool.
Nmap was originally written for Linux, but it has been ported to major operating systems, such as Windows, Solaris, HP-UX, etc. There is even a free and open source GUI called Zenmap.
Although usually used for port scanning, Nmap offers many additional features:
host discovery.
operating system detection.
service version detection.
network information about targets, such as DNS names, device types, and MAC addresses.
ability to scan for well-known vulnerabilities.
nmap is not installed by default on most of linux distros and we need to install it:
1
[email protected]:~# apt install  nmap
Copied!
Before start scanning please note that Port scanning without authorization is sometimes against the provider's acceptable use policy (AUP).
Till the end of war Its better to test it on your own network and do not take the risk. nmap command with no option just prints its long list of switches and options. For our demonstartion we scan scanme.nmap.org :
1
[email protected]:~# nmap -v scanme.nmap.org
2
​
3
Starting Nmap 7.01 ( https://nmap.org ) at 2018-01-22 03:25 PST
4
Initiating Ping Scan at 03:25
5
Scanning scanme.nmap.org (45.33.32.156) [4 ports]
6
Completed Ping Scan at 03:25, 0.24s elapsed (1 total hosts)
7
Initiating Parallel DNS resolution of 1 host. at 03:25
8
Completed Parallel DNS resolution of 1 host. at 03:25, 0.35s elapsed
9
Initiating SYN Stealth Scan at 03:25
10
Scanning scanme.nmap.org (45.33.32.156) [1000 ports]
11
Discovered open port 80/tcp on 45.33.32.156
12
Discovered open port 22/tcp on 45.33.32.156
13
Increasing send delay for 45.33.32.156 from 0 to 5 due to 11 out of 24 dropped probes since last increase.
14
SYN Stealth Scan Timing: About 12.63% done; ETC: 03:29 (0:03:34 remaining)
15
SYN Stealth Scan Timing: About 14.37% done; ETC: 03:32 (0:06:04 remaining)
16
Increasing send delay for 45.33.32.156 from 5 to 10 due to 11 out of 11 dropped probes since last increase.
17
SYN Stealth Scan Timing: About 58.53% done; ETC: 03:28 (0:01:04 remaining)
18
Completed SYN Stealth Scan at 03:27, 109.38s elapsed (1000 total ports)
19
Nmap scan report for scanme.nmap.org (45.33.32.156)
20
Host is up (0.0018s latency).
21
Other addresses for scanme.nmap.org (not scanned): 2600:3c01::f03c:91ff:fe18:bb2f
22
Not shown: 987 filtered ports
23
PORT     STATE  SERVICE
24
21/tcp   closed ftp
25
22/tcp   open   ssh
26
53/tcp   closed domain
27
80/tcp   open   http
28
110/tcp  closed pop3
29
143/tcp  closed imap
30
443/tcp  closed https
31
587/tcp  closed submission
32
993/tcp  closed imaps
33
995/tcp  closed pop3s
34
3389/tcp closed ms-wbt-server
35
8080/tcp closed http-proxy
36
8291/tcp closed unknown
37
​
38
Read data files from: /usr/bin/../share/nmap
39
Nmap done: 1 IP address (1 host up) scanned in 110.55 seconds
40
           Raw packets sent: 3033 (133.256KB) | Rcvd: 1500 (60.008KB)
Copied!
The -v option enables verbose mode.
nmap Target selection
Description
nmap 192.168.10.151
scan a single IP
nmap scanme.nmap.org
scan a host
nmap 192.168.10.150-155
scan a range of IPs
nmap 192.168.10.0/24
scan a subnet
nmap -iL myserverlist.txt
scan targets from a text file
nmap -6 [IP-V6-HERE]
enables IP v6 scanning
okey and ports:
nmap port selection
Dedscription
nmap -p 22 192.168.10.151
scan a single port
nmap -p 1-100 192.168.10.151
scan a range of port
nmap -F 192.168.10.151
Fast-scan 100 most common ports
nmap -p- 192.168.10.151
scan all 65535 ports
Hmm. nmap has different techniques for scanning. But before explaining them we review some fundamentals.
TCP 3-Way Handshake Diagram
Below is a very simplified diagram of the TCP 3-way handshake process. Have a look at the diagram on the right as you examine the list of events on the left.
Event
Diagram
​
​
​
​
after this small review we can talk about nmap different methods of scanning:
TCP SYN Scan (-sS)
It is a basic scan, and it is also called half-open scanning because this technique allows Nmap to get information from the remote host without the complete TCP handshake process, Nmap sends SYN packets to the destination, but it does not create any sessions, As a result, the target computer can’t create any log of the interaction because no session was initiated, making this feature an advantage of the TCP SYN scan.nmap -sT 192.168.10.151
TCP connect() scan (-sT)
This the default scanning technique used, if and only if the SYN scan is not an option, because the SYN scan requires root privilege. Unlike the TCP SYN scan, it completes the normal TCP three way handshake process and requires the system to call connect(), which is a part of the operating system. Keep in mind that this technique is only applicable to find out the TCP ports, not the UDP ports. nmap -sT 192.168.10.151
UDP Scan (-sU)
As the name suggests, this technique is used to find an open UDP port of the target machine. It does not require any SYN packet to be sent because it is targeting the UDP ports. But we can make the scanning more effective by using -sS along with –sU. UDP scans send the UDP packets to the target machine, and waits for a response—if an error message arrives saying the ICMP is unreachable, then it means that the port is closed; but if it gets an appropriate response, then it means that the port is open.
nmap -sU 192.168.10.151
FIN Scan (-sF)
Sometimes a normal TCP SYN scan is not the best solution because of the firewall. IDS and IPS scans might be deployed on the target machine, but a firewall will usually block the SYN packets. A FIN scan sends the packet only set with a FIN flag, so it is not required to complete the TCP handshaking.
The target computer is not able to create a log of this scan (again, an advantage of FIN). Just like a FIN scan, we can perform an xmas scan (-sX) and Null scan (-sN). The idea is same but there is a difference between each type of scan.
Ping Scan (-sP)
Ping scanning is unlike the other scan techniques because it is only used to find out whether the host is alive or not, it is not used to discover open ports. Ping scans require root access s ICMP packets can be sent, but if the user does not have administrator privilege, then the ping scan uses connect() call. nmap -sP 192.168.10.151
Version Detection (-sV)
Version detection is the right technique that is used to find out what software version is running on the target computer and on the respective ports. It is unlike the other scanning techniques because it is not used to detect the open ports, but it requires the information from open ports to detect the software version. In the first step of this scan technique, version detection uses the TCP SYN scan to find out which ports are open. nmap -sV 192.168.10.151
Idle Scan (-sI)
Idle scan is one of my favorite techniques, and it is an advance scan that provides complete anonymity while scanning. In idle scan, Nmap doesn’t send the packets from your real IP address—instead of generating the packets from the attacker machine, Nmap uses another host from the target network to send the packets. ex: nmap -sI 192.168.1.6 192.168.1.1
The idle scan technique (as mentioned above) is used to discover the open ports on 192.168.1.1 while it uses the zombie_host (192.168.1.6) to communicate with the target host. So this is an ideal technique to scan a target computer anonymously.
There are many other scanning techniques are available like FTP bounce, fragmentation scan, ... but that is enough for LPIC exam.

205.1. Basic networking configuration

205.3 Troubleshooting Network Issues

Last modified 2yr ago

Copy link

Contents

TCP 3-Way Handshake Diagram
