Individual containers, need to  communicate with each other through a network to perform the required actions, and this is nothing but Docker Networking.
You can define Docker Networking as a communication passage through which all the isolated containers communicate with each other in various situations to perform the required actions.
As Docker has developed a new way of delivering applications, and with that, containers have also changed some aspects of how networking is approached.
Here are Challenges of Networking Containers :
Portability
How do I guarantee maximum portability across different network environments while taking advantage of unique network characteristics?
Security
How do I segment to prevent the wrong containers from accessing each other?
How do I guarantee that a container with application and cluster control traffic is secure?
​
Performance
How do I provide advanced network services while minimizing latency and maximizing bandwidth?
​
Scalability
How do I ensure that none of these characteristics are sacrificed when scaling applications across many hosts?
​
Container Network Model (CNM)
 The Docker networking architecture is built on a set of interfaces called the Container Networking Model (CNM). The philosophy of CNM is to provide application portability across different infrastructures. This model strikes a balance to achieve application portability and also takes advantage of special features and capabilities of the infrastructure.
CNM Constructs
 Endpoint: Provides the connectivity for services exposed by a container in a network with other services provided by other containers in the network. An endpoint represents a service and not necessarily a particular container, Endpoint has a global scope within a cluster as well.
Sandbox: Created when users request to create an endpoint on a network. A Sandbox can have multiple endpoints attached to different networks representing container’s network configuration such as IP-address, MAC-address, routes, DNS.
 Network:  Provides connectivity between a group of endpoints that belong to the same network and isolate from the rest. So, whenever a network is created or updated, the corresponding Driver will be notified of the event.
CNM Driver Interfaces
The Container Networking Model provides two pluggable and open interfaces that can be used by users, the community, and vendors to add additional functionality, visibility, or control in the network.
 the network plugin APIs are used to create/delete networks and add/remove containers from networks.
​
Native Network Drivers — Native Network Drivers are a native part of the Docker Engine and are provided by Docker. There are multiple drivers to choose from that support different capabilities like overlay networks or local bridges.
Remote Network Drivers — Remote Network Drivers are network drivers created by the community and other vendors. These drivers can be used to provide integration with specific software and hardware. Users can also create their own drivers in cases where they desire specific functionality that is not supported by an existing network driver.
​
The IPAM plugin APIs are used to create/delete address pools and allocate/deallocate container IP addresses.
Libnetwork is an open source Docker library which implements all of the key concepts that make up the CNM.
Docker Native Network Drivers
There are mainly 5 network drivers: Bridge, Host, None, Overlay, Macvlan:
 Bridge: The bridge network is a private default internal network created by docker on the host. So, all containers get an internal IP address and these containers can access each other, using this internal IP. The Bridge networks are usually used when your applications run in standalone containers that need to communicate.
The Docker server creates and configures the host system’s docker0 interface as an Ethernet bridge inside the Linux kernel that could be used by the docker containers to communicate with each other and with the outside world, the default configuration of the docker0 works for most of the scenarios but you could customize the docker0 bridge based on your specific requirements.
The docker0 bridge is virtual interface created by docker, it randomly chooses an address and subnet from the private range defined by RFC 1918 that are not in use on the host machine, and assigns it to docker0. All the docker containers will be connected to the docker0 bridge by default, the docker containers connnected to the docker0 bridge could use the iptables NAT rules created by docker to communicate with the outside world.
Host: This driver removes the network isolation between the docker host and the docker containers to use the host’s networking directly. So with this, you will not be able to run multiple web containers on the same host, on the same port as the port is now common to all containers in the host network.
 Overlay: Creates an internal private network that spans across all the nodes participating in the swarm cluster. So, Overlay networks facilitate communication between a swarm service and a standalone container, or between two standalone containers on different Docker Daemons.
 Macvlan: Allows you to assign a MAC address to a container, making it appear as a physical device on your network. Then, the Docker daemon routes traffic to containers by their MAC addresses. Macvlan driver is the best choice when you are expected to be directly connected to the physical network, rather than routed through the Docker host’s network stack.
None: In this kind of network, containers are not attached to any network and do not have any access to the external network or other containers. So, this network is used when you want to completely disable the networking stack on a container and, only create a loopback device.
Lets wrap it up:
Bridge
Host
Overlay
Macvlan
None
Connects container to the LAN and other containers
The default network type
Great for most use cases
Remove network isolation between container and host
Only one container (or application on the host) can use a port at the same time
Useful for specific applications, such as management container that you want to run on every host
Connects multiple Docker hosts(and their containers) together and enable swarm
Only available with Docker EE and Swarm enabled.
Multihost networking using VXLAN
Assign a MAC address, appear as physical host
Clones host interfaces to create virtual interfaces, available in the container.
Supports connecting to VLANs.
Connects the container to an isolated network with only that container on it
Container cannot communicate with any other networks or networked devices.
Listing Docker Networks
1
[[email protected] ~]# docker network ls
2
NETWORK ID          NAME                DRIVER              SCOPE
3
b05ff920f0da        bridge              bridge              local
4
f34113b7dc6a        host                host                local
5
ba9b9833188b        none                null                local
Copied!
as we are using Docker-CE there is no Overlay network. We can get detailed information about any of these networks using docker network inspect  command.
Creating a bridge network
1
[[email protected] ~]# docker network create --driver bridge myapp-net
2
4c7a97493cf3b2c151966afa5a933859ba6b246862f1d05ac9030d9aaa4d70ac
Copied!
1
[[email protected] ~]# docker network ls
2
NETWORK ID          NAME                DRIVER              SCOPE
3
b05ff920f0da        bridge              bridge              local
4
f34113b7dc6a        host                host                local
5
4c7a97493cf3        myapp-net           bridge              local
6
ba9b9833188b        none                null                local
Copied!
so again we can user docker network inspect myapp-net to see details such as network subnet.
Running container(s) on the bridge network
1
[[email protected] ~]# docker run -dit --name app1 --network myapp-net alpine
2
Unable to find image 'alpine:latest' locally
3
latest: Pulling from library/alpine
4
df20fa9351a1: Pull complete
5
Digest: sha256:185518070891758909c9f839cf4ca393ee977ac378609f700f60a771a2dfe321
6
Status: Downloaded newer image for alpine:latest
7
2ca2b7353e439a27390d363237ba166e9bb9f957748ec01455a3f17a4fc14afa
Copied!
1
[[email protected] ~]# docker ps | grep alpine
2
2ca2b7353e43        alpine              "/bin/sh"           48 seconds ago      Up 47 seconds                           app1
Copied!
use docker network inspect myapp-net in order to check the container(s) that are running on the myapp-net network, see the ip address.
Lets bring up another container app2 on myapp-net and check the communications between two containers:
1
[[email protected] ~]# docker run -dit --name app2 --network myapp-net alpine
2
c353a85a7c70ff125815f817335abb98ebffa82f595878d20074aee8ed837f74
Copied!
1
[[email protected] ~]# docker network inspect myapp-net
2
.
3
.
4
.
5
 "Containers": {
6
            "2ca2b7353e439a27390d363237ba166e9bb9f957748ec01455a3f17a4fc14afa": {
7
                "Name": "app1",
8
                "EndpointID": "edfcfafd5da16efe1524ce744f8dae3cec57dc7cf6e80aa922e7b28d5bcebb2a",
9
                "MacAddress": "02:42:ac:12:00:02",
10
                "IPv4Address": "172.18.0.2/16",
11
                "IPv6Address": ""
12
            },
13
            "c353a85a7c70ff125815f817335abb98ebffa82f595878d20074aee8ed837f74": {
14
                "Name": "app2",
15
                "EndpointID": "a2e0b13be62ae9813ed3d70d423f32031b57a3cef30eec78598684f0459cbfdd",
16
                "MacAddress": "02:42:ac:12:00:03",
17
                "IPv4Address": "172.18.0.3/16",
18
                "IPv6Address": ""
19
            }
20
        },
21
        "Options": {},
22
        "Labels": {}
23
    }
Copied!
attach to app1 and pinging app2 :
1
[[email protected] ~]# docker attach app1
2
/ # hostname
3
2ca2b7353e43
4
/ # ping 172.18.0.3
5
PING 172.18.0.3 (172.18.0.3): 56 data bytes
6
64 bytes from 172.18.0.3: seq=0 ttl=64 time=0.191 ms
7
64 bytes from 172.18.0.3: seq=1 ttl=64 time=0.057 ms
8
64 bytes from 172.18.0.3: seq=2 ttl=64 time=0.142 ms
9
^C
10
--- 172.18.0.3 ping statistics ---
11
3 packets transmitted, 3 packets received, 0% packet loss
12
round-trip min/avg/max = 0.057/0.130/0.191 ms
13
/ #
14
/ # ping app2
15
PING app2 (172.18.0.3): 56 data bytes
16
64 bytes from 172.18.0.3: seq=0 ttl=64 time=0.087 ms
17
64 bytes from 172.18.0.3: seq=1 ttl=64 time=0.103 ms
18
64 bytes from 172.18.0.3: seq=2 ttl=64 time=0.132 ms
19
^C
20
--- app2 ping statistics ---
21
3 packets transmitted, 3 packets received, 0% packet loss
22
round-trip min/avg/max = 0.087/0.107/0.132 ms
23
/ #
24
/ #
Copied!
How to get out without stopping the container ? ctrl+p and then ctrl+q.

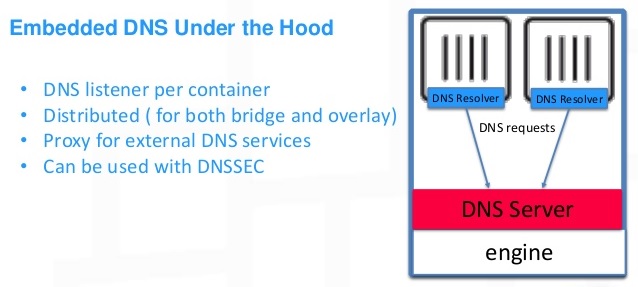

Docker Embeded DNS
Containers can reach each other using their names
All containers in a docker host can resolve each other with the name of the container, docker has a built in DNS server that helps the containers to resolve each other using the container name. Built in DNS server always run at address 127.0.0.11.
As there is no guarantee that containers get the same ip when system reboots, using the container's name it the right way of calling other apps inside other containers.
Removing a docker network
1
[[email protected] ~]# docker network remove myapp-net
2
Error response from daemon: error while removing network: network myapp-net id 4c7a97493cf3b2c151966afa5a933859ba6b246862f1d05ac9030d9aaa4d70ac has active endpoints
Copied!
before removing a network we have to make sure there are no running container on that network so first:
1
[[email protected] ~]# docker container  stop app1 app2
2
app1
3
app2
Copied!
1
[[email protected] ~]# docker network remove myapp-net
2
myapp-net
3
[[email protected] ~]# docker network ls
4
NETWORK ID          NAME                DRIVER              SCOPE
5
b05ff920f0da        bridge              bridge              local
6
f34113b7dc6a        host                host                local
7
ba9b9833188b        none                null                local
Copied!
 docker network prune will remove all unused networks.
Good to know
By default, containers have outbound network access but no inbound network access.
Ports must be published to allow inbound network access.
Publishing ports
 By default, when you create a container, it does not publish any of its ports to the outside world. To make a port available to services outside of Docker, or to Docker containers which are not connected to the container’s network, use the --publish or -p flag. This creates a firewall rule which maps a container port to a port on the Docker host. Here are some examples:
Flag value
Description
-p 8080:80
Map TCP port 80 in the container to port 8080 on the Docker host.
-p 192.168.1.100:8080:80
Map TCP port 80 in the container to port 8080 on the Docker host for connections to host IP 192.168.1.100.
-p 8080:80/udp
Map UDP port 80 in the container to port 8080 on the Docker host.
-p 8080:80/tcp -p 8080:80/udp
Map TCP port 80 in the container to TCP port 8080 on the Docker host, and map UDP port 80 in the container to UDP port 8080 on the Docker host.
1
[[email protected] ~]# docker container run -dit -p 8080:80 --name web1 nginx
2
0cbb21df8668e518a002282b315fa9fea64d91de4af5ed82ee4bd5eea13324e6
3
​
4
[[email protected] ~]# docker ps
5
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                  NAMES
6
0cbb21df8668        nginx               "nginx -g 'daemon of…"   7 seconds ago       Up 7 seconds        0.0.0.0:8080->80/tcp   web1
Copied!
If you provide the -P (NOTE: the letter is upper-case) option when running your container, it will bind each exposed port to a random ports of the host.
1
[[email protected] ~]# docker container run -dit -P --name web2 nginx
2
ec7f08b84e2d1c105b367caf5bee5547760ac0f1bc193383e492bb6c3871bae9
3
​
4
[[email protected] ~]# docker ps
5
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                   NAMES
6
ec7f08b84e2d        nginx               "nginx -g 'daemon of…"   3 seconds ago       Up 1 second         0.0.0.0:32768->80/tcp   web2
7
0cbb21df8668        nginx               "nginx -g 'daemon of…"   26 minutes ago      Up 26 minutes       0.0.0.0:8080->80/tcp    web1
8
​
Copied!
Configuring DNS
 By default, a container inherits the DNS settings of the host, as defined in the /etc/resolv.conf configuration file. Containers that use the default bridge network get a copy of this file, whereas containers that use a custom network use Docker’s embedded DNS server, which forwards external DNS lookups to the DNS servers configured on the host.
If we want a container to use specific DNS server we have  a couple of different ways to go about this:
1.
Using --dns flag  while run a container:
1
[[email protected] ~]# docker container run -it --dns 172.16.40.70 centos /bin/bash
2
Unable to find image 'centos:latest' locally
3
latest: Pulling from library/centos
4
6910e5a164f7: Pull complete
5
Digest: sha256:4062bbdd1bb0801b0aa38e0f83dece70fb7a5e9bce223423a68de2d8b784b43b
6
Status: Downloaded newer image for centos:latest
7
[[email protected] /]#
8
[[email protected] /]# cat /etc/resolv.conf
9
nameserver 172.16.40.70
10
[[email protected] /]#
Copied!
    ctrk+d to exit  and lets check it again with out specifying DNS Server:
1
[[email protected] ~]# docker container run -it  centos /bin/bash
2
[[email protected] /]#
3
[[email protected] /]# cat /etc/resolv.conf
4
# Generated by NetworkManager
5
nameserver 8.8.8.8
6
[[email protected] /]#
Copied!
and it has taken my Docker host DNS server settings. Please note that  Custom hosts defined in /etc/hosts are not inherited. To pass additional hosts into your container, refer to add entries to container hosts file in the docker run.
2. creating /etc/docker/daemon.json file:
it would actually infect intire docker host:
1
[[email protected] ~]# vim /etc/docker/daemon.json
Copied!
put the desired DNS server(s) in there:
1
{
2
"dns": ["1.1.1.1"]
3
}
Copied!
restarting docker service and check the results:
1
[[email protected] ~]# systemctl restart docker.service
2
[[email protected] ~]#
3
[[email protected] ~]# docker container run -it  centos /bin/bash
4
[[email protected] /]#
5
[[email protected] /]# cat /etc/resolv.conf
6
nameserver 1.1.1.1
7
[[email protected] /]#
Copied!
Creating a host network
The concept of host network is very simple, instead of a container running and then having some  sort of network address translation that you may or may not configure between the host and  the container(s) , with host network the container runs and it is utilizing the physical interface of the host network. So no NAT, no port to configure, that container is directly on host physical network.
1
[[email protected] ~]# docker container run -d --network host nginx
2
50d79130ab8cd8e96758756b7920b64d4675be262cc1e2250c7b06c066fdd07f
3
​
4
[[email protected] ~]# docker ps
5
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
6
50d79130ab8c        nginx               "nginx -g 'daemon of…"   5 seconds ago       Up 4 seconds                            determined_leavitt
Copied!
and actually there are not private to public port mapping, it is directly on the host network:
1
[[email protected] ~]#
2
[[email protected] ~]# docker container port determined_leavitt
3
[[email protected] ~]#
Copied!
 open a web browser and go to your docker host ip address:
.
.
--------
with the special thanks of David Davis .
​https://success.docker.com/article/networking​
​https://www.edureka.co/blog/docker-networking/​
​https://developer.ibm.com/recipes/tutorials/networking-your-docker-containers-using-docker0-bridge/#:~:text=The%20docker0%20bridge%20is%20virtual,and%20assigns%20it%20to%20docker0.​
​https://www.slideshare.net/Docker/docker-networking-0-to-60mph-slides​
​https://vsupalov.com/docker-expose-ports/​
​https://docs.docker.com/config/containers/container-networking/​
.
​

Docker Storage and volumes

Docker Security

Last modified 10mo ago

Copy link

Contents

Container Network Model (CNM)

Docker Native Network Drivers

Listing Docker Networks

Creating a bridge network

Running container(s) on the bridge network

Docker Embeded DNS

Removing a docker network

Publishing ports

Configuring DNS

Creating a host network
